When it comes to manufacturing high-quality precision parts for industries like automotive, aerospace, electronics, and medical equipment, two of the most commonly used production methods are CNC machining and die casting. Both processes play an essential role in modern manufacturing, but they are distinctly different in terms of their applications, processes, materials, and cost-effectiveness. Understanding the difference between these two manufacturing techniques is critical when deciding which method to use for producing die casting parts or machined components.
This article dives deeply into CNC machining and die casting, exploring their processes, advantages, limitations, and differences. Additionally, we’ll provide insights into choosing the right manufacturing method, based on factors like production volume, material requirements, and design complexity. By the end, you will have a clear understanding of how each method works and which one fits your needs best.

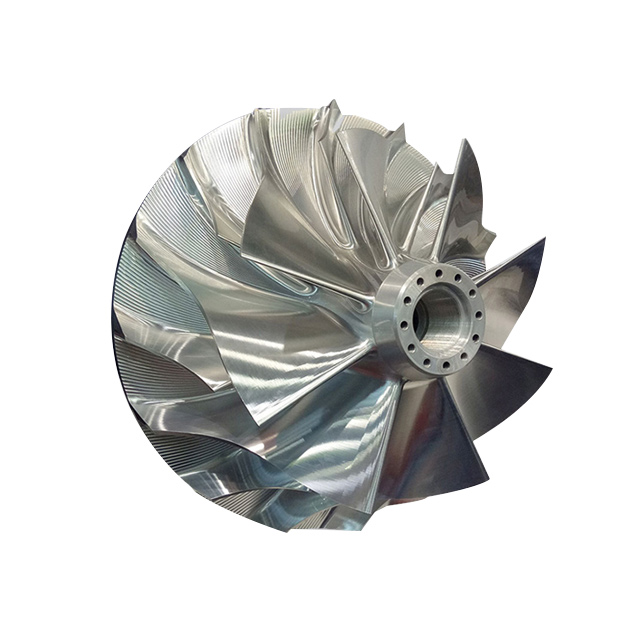

What is CNC Machining?
CNC (Computer Numerical Control) machining is a subtractive manufacturing process that involves the use of computer-controlled machines to precisely remove material from a solid workpiece. CNC machines use programmed instructions to control cutting tools, lathes, mills, or grinders, enabling the creation of complex and precise geometries.
The CNC Machining Process
The CNC machining process typically involves the following steps:
Designing the CAD Model: Engineers create a 3D CAD (Computer-Aided Design) model of the desired part.
Programming the Machine: The CAD file is converted into a CAM (Computer-Aided Manufacturing) file and loaded into the CNC machine. Instructions are programmed to dictate tool paths, speeds, and cuts.
Material Selection: A block or bar of material (metal, plastic, or composite) is chosen for the workpiece.
Machining: The CNC machine removes material layer by layer using cutting tools until the desired shape is achieved.
Finishing: After machining, the part may undergo polishing, anodizing, or other surface treatments for improved appearance and durability.
Advantages of CNC Machining
High Precision: CNC machining can achieve tolerances as tight as ±0.001 inches, making it ideal for producing intricate and precise parts.
Material Versatility: It works with a wide range of materials, including metals (aluminum, steel, titanium) and plastics.
Low Setup Time: Once programmed, CNC machines can quickly produce parts without extensive setup changes.
Customizability: Perfect for creating prototypes or customized components.
Scalability: While better suited for low to medium production volumes, CNC machining can still handle small batch production efficiently.
Limitations of CNC Machining
Material Waste: As a subtractive process, a significant amount of material is wasted during machining, especially for complex geometries.
Cost: High precision and low production volumes can make CNC machining more expensive for large-scale production.
Complexity Challenges: Although capable of intricate designs, CNC machining may struggle with certain internal features or extremely thin walls.
CNC machining is ideal for prototyping or low-volume production, as well as parts that require high precision and tight tolerances.
What is Die Casting?
Die casting is a metal fabrication process that involves forcing molten metal into a pre-designed mold cavity under high pressure. Once the metal solidifies, the resulting part is ejected from the mold. This casting method is widely used for mass production of components with consistent dimensions and superior surface finishes.
The Die Casting Process
The die casting process consists of several key steps:
Creating the Mold (Die): A custom mold, typically made of steel, is designed to match the desired part geometry.
Melting the Metal: Metals like aluminum, zinc, or magnesium are heated until they reach their molten state.
Injection: Molten metal is injected into the mold cavity under high pressure, ensuring the metal fills every corner of the mold.
Cooling and Solidification: The metal cools and solidifies inside the mold, forming the desired shape.
Ejection and Finishing: The solid part is ejected from the mold. Secondary processes like trimming, polishing, or coating may follow.
Advantages of Die Casting
High Efficiency for Mass Production: Die casting is extremely cost-effective for producing large quantities of identical parts.
Excellent Surface Finish: Parts produced via die casting require minimal post-processing and can achieve smooth or textured finishes.
Tight Tolerances: Die casting parts can achieve tolerances as tight as ±0.005 inches.
Material Strength: Die cast components are often stronger than those made using other casting methods, especially when lightweight metals like aluminum or zinc alloys are used.
Complex Geometries: The process is ideal for creating intricate shapes with thin walls and detailed features.
Limitations of Die Casting
High Initial Costs: The upfront cost for designing and manufacturing molds is high, making die casting unsuitable for low production volumes.
Material Constraints: Die casting is limited to certain metals, such as aluminum, zinc, and magnesium.
Not Ideal for Prototypes: Due to the expense and time required to create molds, die casting is inefficient for prototyping or short-run production.
Limited to Medium to Large Runs: Economically viable only for medium to high-volume production.
Die casting is most commonly used for components like engine blocks, aerospace parts, and consumer electronics housing, where mass production is required.
What is the Difference Between Die Casting and CNC Machining?
While both CNC machining and die casting are used for manufacturing die casting parts and other precision components, their differences lie in their processes, applications, costs, and material considerations. Below is a detailed comparison:
| Aspect | CNC Machining | Die Casting |
| Manufacturing Process | Subtractive (removes material from a solid block) | Additive (injects molten metal into a mold) |
| Best for Production Volume | Low to medium production volumes | Medium to high production volumes |
| Precision and Tolerance | Extremely high precision, tolerances up to ±0.001 inches | High precision, tolerances up to ±0.005 inches |
| Tooling Costs | Low initial setup costs | High initial mold costs |
| Material Utilization | Less efficient, more material waste | Highly efficient, minimal material waste |
| Material Options | Works with metals, plastics, and composites | Limited to specific metals (aluminum, zinc, etc.) |
| Lead Time | Shorter for prototypes and low-volume production | Longer due to mold creation |
| Surface Finish | Requires post-processing for smooth finish | Excellent as-cast surface finishes |
| Scalability | Limited scalability due to higher costs at high volumes | Excellent scalability for mass production |
How to Choose
Choosing between CNC machining and die casting depends on several factors, including production volume, material requirements, design complexity, and budget. Consider the following points:
Production Volume:
For low to medium production volumes or prototyping, CNC machining is more cost-effective.
For high-volume production, die casting is the better choice due to its lower per-unit cost.
Material Requirements:
If you require non-metal materials like plastics, CNC machining is necessary.
For lightweight metal components with excellent durability, die casting is ideal.
Design Complexity:
For intricate designs with thin walls, die casting is preferable.
For designs requiring extremely tight tolerances, CNC machining is better.
Budget:
Timeframe:
Conclusion
Both CNC machining and die casting are indispensable manufacturing methods, each with its strengths and limitations. CNC machining is the go-to choice for highly customized, precise, and low-volume parts, while die casting is ideal for mass production of lightweight metal components with consistent quality.
Choosing the right method depends on your specific project requirements, such as production scale, material preference, and budget. When selecting between CNC machining and die casting, understanding the differences in their processes, costs, and applications will help you make an informed decision.
FAQs
What are the main advantages of die casting over CNC machining?
Die casting is more efficient for high-volume production and creates parts with excellent surface finishes and minimal post-processing. It also generates less material waste compared to CNC machining.
Can CNC machining and die casting be combined?
Yes, CNC machining can be used as a secondary process for die cast parts to refine specific features or achieve tighter tolerances.
Which materials are commonly used in die casting?
Die casting primarily uses metals like aluminum, zinc, and magnesium due to their excellent flow characteristics and strength-to-weight ratio.
Is CNC machining cost-effective for mass production?
CNC machining is generally not cost-effective for mass production due to higher material waste and slower production speeds compared to die casting.
Why is mold creation expensive in die casting?
The molds used in die casting are made of high-strength steel and require precise engineering to ensure dimensional accuracy and durability, leading to high initial costs.
