In modern manufacturing, CNC technology enables automated part machining, improving efficiency and accuracy by precisely controlling the axial motion of machine tools. 3 axis and 5 axis CNC machines have their uses in different manufacturing scenarios. This article will discuss the advantages of 5 axis CNC technology over three-axis CNC, as well as their applications and future trends in precision manufacturing.
Differences in accuracy between 3 axis and 5 axis machining .
3 axis CNC machining gives us the main up-down, left-right, and front-back movements needed for making most common parts. However, it might not handle complex shapes as easily as 5 axis machines. When making complex parts, 3 axis machines might need to be stopped and reset several times, which can make the process longer and riskier for mistakes, possibly lowering the exactness of the final product.

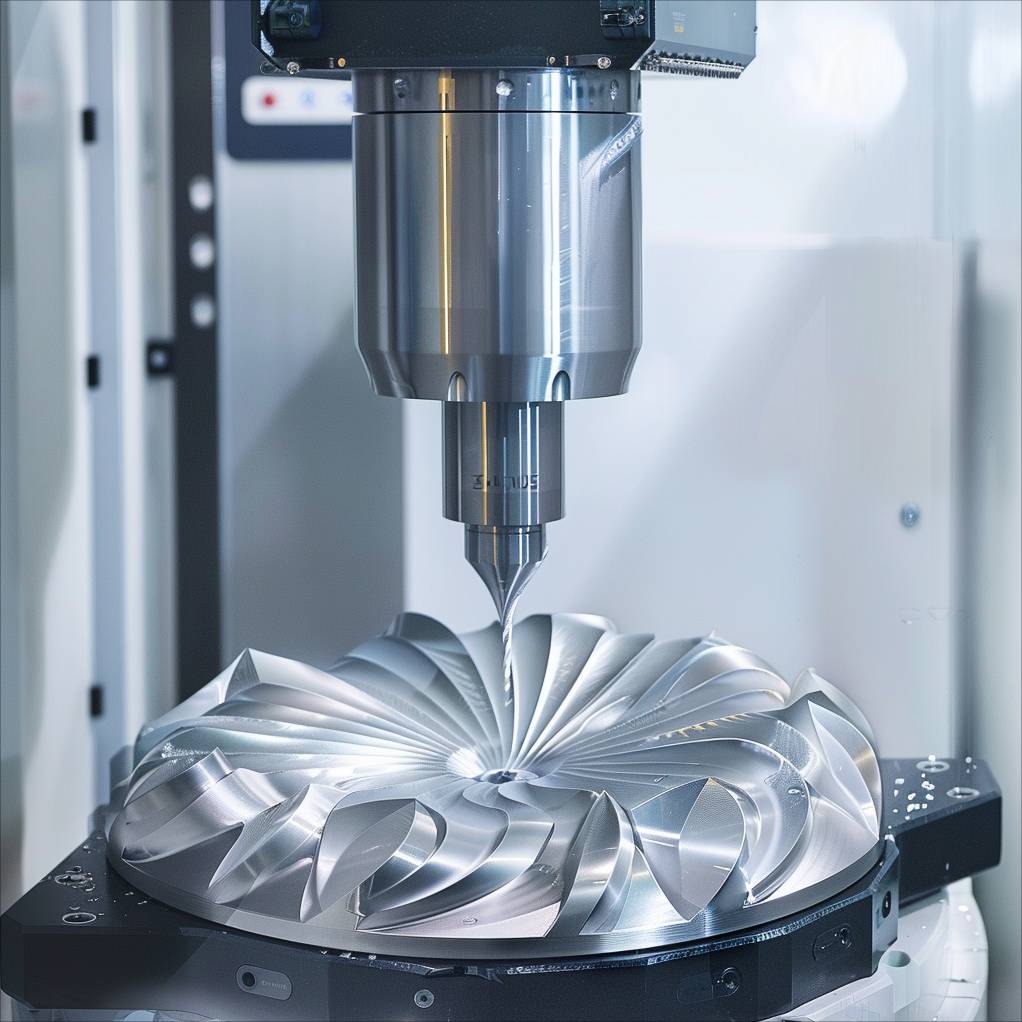

5 axis CNC machining has many benefits over three-axis, especially for complicated shapes and angles. The extra spinning axes let the tool reach the workpiece from many angles, making the work more flexible and precise. Also, 5 axis machines can work on several sides of a part in just one setup, which means less time spent on setting up and fewer chances for mistakes, helping to make production faster and more efficient.
Five-axis machines use tool compensation technology and real-time calibration to make sure the tool follows the exact path it's supposed to while cutting. This makes the cutting more accurate. The tool moves in a smooth, continuous path, which means it doesn't have to change direction suddenly. This helps the tool last longer and makes the surface it cuts look better. Better accuracy and a nicer surface are good for the quality of the finished part.
Cost-effectiveness comparison: 3 axis vs 5 axis CNC machining.
3 axis machining is used to make metal parts for buildings. It creates things like steel connectors, frames for walls, and parts for doors and windows. Even though these parts need to be very exact, 3 axis machining can make them just right.
5 axis CNC machines improve production efficiency by reducing the number of clamping times and multi-faceted processing, while providing higher processing accuracy, which is critical to product quality. In addition, they can also reduce tool wear, extend tool life, and may reduce energy consumption and labor costs. Although maintenance costs may be high, five-axis machining is suitable for the high-end market and represents a future development trend.
For making lots of items, 5 axis machining can save money by cutting down how long it takes to get ready and make the parts. But when making just a few items, three-axis machining can save money because it costs less to start with and to run. Secondly, in terms of efficiency, 5 axis machining can greatly improve production efficiency. Five-axis machine tools can work on many sides of a part at once, so they save time on holding and moving the part into place. This makes the whole process of making things faster. Also, 5 axis machining plans the best way for the tools to move, which cuts down on extra steps and makes cutting more effective. Working this way makes production quicker, uses less worker time, and keeps the machines from wearing out as fast. This is a big help for businesses to do better in the market and keep their costs down.
5 axis CNC machining: the forefront of precision manufacturing
The application scope of 5 axis machining and 3 axis machining is also somewhat different.
In the construction industry, three-axis machining makes different metal parts for buildings, like connectors for steel, frames for the outside walls, and hardware for doors and windows. These parts need to be just right in size and quality, but 3 axis machining can make them well and dependably.
3 axis machines are great at making tiny parts for electronics. They create small things like the frames that hold up circuit boards, the cases that protect electronic parts, and the pieces that help cool down devices.
In the field of aerospace, which is at the forefront of science and technology, 5 axis machining is the only way to manufacture key parts such as aircraft engine blades, turbine disks, and fuselage structural parts. The complex surfaces and spatial angles of these parts can only be accurately processed by 5 axis CNC machining to ensure the safety and performance of the aircraft.
In the manufacturing of advanced automotive parts, 5 axis machining is even more impressive, producing those precise engine parts, turbochargers, and complex suspension system parts. These advanced parts have extremely high requirements for machining accuracy and material utilization. 5 axis machining can not only meet these requirements, but also provide better solutions.
In the industry that makes molds with high precision,5 axis machines play a key role. They make the main parts for molds that are very complex, like molds for injecting plastic and casting metal. These molds have detailed holes and need to be very exact in size.
Five-axis machining can make these molds with great accuracy and quickly, showing how professional it is.
5 axis CNC machining gives us more ways to make things better than three-axis can. It has special spinning axes that let the cutting tool move all around the part we're making. This helps us cut more precisely and flexibly. When we use five-axis machines, we can work on many sides without having to reposition the part again and again. That means we make fewer mistakes and get more work done faster.
With the continuous advancement of technology, it is expected that these two machining technologies will further broaden their application scope and bring more opportunities for innovation and value-added to different industries.
