The die casting process is a manufacturing technique that has revolutionized the production of complex metal components. Known for its precision, efficiency, and cost-effectiveness, this process is widely used across industries such as automotive, aerospace, electronics, and home appliances. As modern industries demand high-quality parts with intricate designs, die casting has emerged as a pivotal solution to meet these requirements. But what exactly is die casting, and why is it so essential in modern manufacturing? In this article, we’ll delve deep into the die casting process, its working mechanism, types, materials, applications, and benefits to give you a comprehensive understanding.
What is a Die Casting Process?
The die casting process is a metal casting technique in which molten metal is forced into a mold cavity under high pressure. The molds, also known as dies, are typically made from hardened tool steel and are designed to produce precise, repeatable shapes with tight tolerances. Once the metal solidifies in the mold, the die opens to eject the part, which is then further processed if necessary.
This manufacturing process is ideal for mass production, as it allows for the creation of highly detailed and uniform components at a low per-unit cost. Commonly used metals in die casting include aluminum, zinc, magnesium, and copper alloys. The process is highly versatile and can be customized to create parts with intricate details, smooth finishes, and excellent mechanical properties.
How Does Die Casting Work?
The die casting process consists of several steps, each critical to ensuring the production of high-quality components. Below is a step-by-step breakdown of how it works:
Step 1 – Mould Design
The first step in the die casting process is the design and creation of the mold, also referred to as the die. The mold is typically made from high-strength steel and crafted with precision to achieve the desired shape and size of the final product. Engineers use advanced CAD (Computer-Aided Design) software to create the mold, ensuring it can withstand high pressures and repeated use.
The mold consists of two halves: the fixed half (stationary die) and the movable half (ejector die). These halves fit together to form the cavity where the molten metal will be injected. Channels, gates, and vents are strategically designed to ensure smooth metal flow and minimize defects.
Step 2 – Metal Preparation
Once the mold is ready, the metal chosen for the casting process is prepared. Metals such as aluminum, zinc, or magnesium are commonly used due to their excellent casting properties. The metal is melted in a furnace and brought to the desired temperature, allowing it to flow easily into the mold.
During this step, impurities in the molten metal are removed to ensure a high-quality casting. Fluxing agents are often added to eliminate oxides and other contaminants, further improving the metal’s purity.
Step 3 – Injection Process
The molten metal is then injected into the mold cavity under high pressure. Depending on the type of die casting (hot chamber or cold chamber), the injection mechanism may vary. In the hot chamber process, the metal is already in a liquid state and injected directly into the mold using a plunger. In the cold chamber process, the molten metal is manually ladled into the injection chamber before being forced into the mold.
The high-pressure injection ensures that the molten metal fills every corner of the mold, capturing intricate details and producing a precise, uniform shape.
Step 4 – Casting Process
Once the molten metal is inside the mold, it is allowed to cool and solidify. Cooling time depends on the metal used, the size of the part, and the mold design. As the metal hardens, it takes the shape of the mold cavity. To speed up the process, water or other cooling agents may be used to regulate the mold's temperature.
After the metal has sufficiently solidified, the mold is opened, and the cast part is ejected using ejector pins. The mold is then cleaned and prepared for the next casting cycle.
Step 5 – Finishing Process
The final step in the die casting process is finishing. The cast part is removed from the mold and may require additional processing to achieve the desired quality. Common finishing processes include:
Trimming: Removing excess material (flash) from the part.
Surface Treatment: Polishing, painting, or coating to improve appearance and durability.
Machining: Additional processes like drilling or milling to meet specific design requirements.
Inspection: Quality checks to ensure the part meets specifications.
Why is Die Casting Used?
The die casting process is widely used due to its numerous advantages:
Precision and Accuracy: Produces components with tight tolerances and intricate details.
High Production Efficiency: Suitable for mass production, reducing lead times and costs.
Durability: Creates strong, long-lasting parts with excellent mechanical properties.
Smooth Surface Finish: Reduces the need for extensive post-processing.
Material Versatility: Compatible with a range of metals like aluminum, zinc, and magnesium.
Cost-Effectiveness: Lower per-unit cost for large production volumes.
These benefits make die casting an ideal choice for industries requiring high-quality components at scale.
Types of Die Casting
There are several types of die casting processes, each suited to specific applications and materials. Below are the most common types:
Cold Chamber Die Casting
In cold chamber die casting, molten metal is manually ladled into the injection chamber before being forced into the mold. This method is ideal for metals with high melting points, such as aluminum and copper alloys. It is slower than the hot chamber process but produces high-quality parts.
Hot Chamber Die Casting
In hot chamber die casting, the injection mechanism is submerged in the molten metal, allowing for faster cycles. This method is commonly used for low-melting-point metals like zinc and magnesium. It is highly efficient but unsuitable for metals prone to corrosion at high temperatures.
Vacuum Die Casting
Vacuum die casting involves creating a vacuum inside the mold to eliminate air pockets and porosity. This method is ideal for components requiring high strength and density, such as aerospace and automotive parts.
Gravity Die Casting
In gravity die casting, molten metal is poured into the mold under the force of gravity. This process is slower but suitable for simple designs and smaller production runs. It is often used for aluminum and magnesium casting.
High-Pressure Die Casting
High-pressure die casting forces molten metal into the mold cavity at extremely high pressures, ensuring precision and speed. It is widely used for mass production of parts with intricate designs and tight tolerances.
Low-Pressure Die Casting
In low-pressure die casting, molten metal is introduced into the mold under controlled, low pressure. This method is ideal for producing parts with excellent mechanical properties, such as wheels and structural components.
Suitable Die Casting Materials
The choice of material in the die casting process depends on the application and desired properties of the final product. Common materials include:
Aluminum: Lightweight, corrosion-resistant, and ideal for automotive and aerospace applications.
Zinc: High strength, excellent ductility, and suitable for intricate designs.
Magnesium: Lightweight and strong, used in electronics and automotive industries.
Copper: Excellent thermal and electrical conductivity, used in electrical components.
Lead and Tin: Used in specialized applications where weight and corrosion resistance are necessary.
Applications of Die Casting
The die casting process is utilized in a wide range of industries, including:

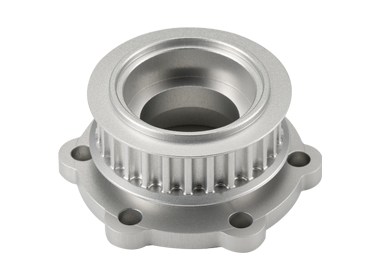

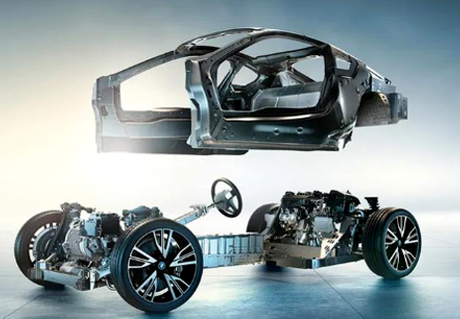

Automotive: Engine components, transmission housings, and wheels.
Aerospace: Lightweight structural parts and engine components.
Electronics: Casings, heat sinks, and connectors.
Home Appliances: Handles, frames, and decorative components.
Medical Equipment: Precision parts for diagnostic devices and surgical instruments.
Conclusion
The die casting process is an indispensable manufacturing technique that offers precision, efficiency, and cost savings. With its ability to produce complex, high-quality parts at scale, it has become a cornerstone of modern manufacturing. By understanding the intricacies of die casting, businesses can leverage its benefits to create innovative products that meet the demands of today’s industries.
FAQs
1. What are the advantages of the die casting process?
Die casting offers precision, high production efficiency, cost-effectiveness, and the ability to create complex designs with excellent surface finishes.
2. What materials are commonly used in die casting?
Common materials include aluminum, zinc, magnesium, copper, and their alloys.
3. What is the difference between hot chamber and cold chamber die casting?
Hot chamber die casting is faster and used for low-melting-point metals, while cold chamber die casting is suitable for high-melting-point metals like aluminum.
4. What industries use die casting?
Industries such as automotive, aerospace, electronics, and home appliances heavily rely on die casting for high-quality components.
5. How does vacuum die casting improve part quality?
Vacuum die casting eliminates air pockets and porosity, resulting in denser, stronger parts.
