CNC turning is one of the most important and widely used processes in modern manufacturing. Whether you're looking at automotive parts, aerospace components, or everyday hardware, there’s a good chance that CNC turning played a role in producing them. This technology allows manufacturers to create precise, repeatable, and complex cylindrical parts using automated machinery and computer programming. For beginners trying to understand the concept, this guide offers a clear and comprehensive explanation of what CNC turning is, how it works, and why it's so essential to industries around the world.
Understanding CNC Turning
CNC turning is a machining process where computer numerical control (CNC) is used to operate a lathe, a type of machine tool that spins a workpiece while cutting tools remove material to create the desired shape. In this process, the workpiece is held in a rotating spindle, and cutting tools are positioned against it to shave off excess material in a controlled and precise manner.
Unlike CNC milling, where the cutting tool rotates and the workpiece stays still or moves slightly, CNC turning involves the rotation of the material while the cutting tool remains mostly stationary (except for its movement along the tool path). The goal is to create parts that are symmetrical around their axis, such as shafts, screws, rods, cylinders, and other round or tubular components.
A Brief History of Lathe Machining
The lathe is one of the oldest known machine tools, dating back thousands of years. Early versions were operated manually, using foot pedals or hand cranks. These machines evolved significantly during the Industrial Revolution, becoming more accurate and easier to use. The real transformation came in the late 20th century with the introduction of CNC (Computer Numerical Control), which allowed lathes to operate automatically by reading pre-programmed code.
This breakthrough revolutionized the turning process. Instead of relying on manual skills to shape parts, CNC turning machines could now produce highly consistent and intricate components at high speed, with minimal human intervention.
How CNC Turning Works
At the core of CNC turning is a program, usually written in G-code, which tells the machine exactly how to move. The steps involved in the process typically include:
Design: The part is first designed using computer-aided design (CAD) software. The digital model includes all measurements, shapes, and features required.
Programming: Using CAM (computer-aided manufacturing) software, the design is converted into machine-readable instructions—G-code—that defines cutting paths, feed rates, speeds, and tool movements.
Setup: The machinist secures the raw material (known as a blank) into the machine’s chuck or collet and loads the correct cutting tools into the tool holder.
Turning Process: The CNC lathe begins to spin the blank at a programmed speed while the cutting tool moves along the part’s surface, removing material as needed.
Finishing: After rough cutting, finishing passes are made to smooth the part and bring it to final dimensions. The machine may also perform drilling, boring, grooving, knurling, or threading, depending on the design.
Inspection: The finished part is checked for accuracy, using measurement tools to ensure it meets all specifications.

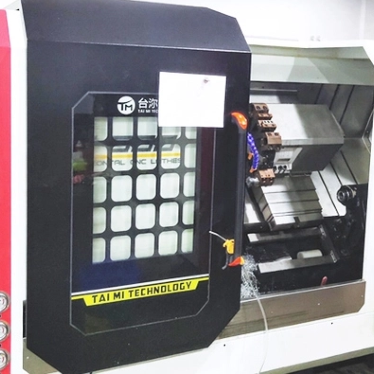

Main Components of a CNC Turning Machine
To better understand CNC turning, it's helpful to know the key parts of a CNC lathe:
Chuck/Collet: These are holding devices that grip the material securely while it spins.
Spindle: The rotating axis that spins the material.
Tool Turret: A rotating disk that holds multiple cutting tools, allowing the machine to switch tools automatically during the process.
Bed: The base of the machine that provides structural support and stability.
Control Panel: The user interface where the operator inputs commands, loads programs, and monitors the machine’s operation.
Tailstock (optional): Used to support long workpieces from the opposite end of the chuck.
These components work together to execute detailed machining tasks automatically and consistently.
Types of CNC Turning Operations
CNC turning isn’t just about cutting a cylinder—it’s a flexible process that includes various operations to achieve complex part geometries:
Facing: Cutting across the end of the material to produce a flat surface.
Straight Turning: Reducing the diameter along the length of the part.
Taper Turning: Cutting the workpiece so its diameter gradually decreases or increases.
Grooving: Cutting a narrow channel on the surface.
Threading: Forming screw threads on the external or internal surfaces.
Drilling: Adding holes along the part’s centerline.
Parting/Cut-off: Removing the finished part from the stock material.
These operations are often combined in a single program to complete parts in one setup, improving efficiency and accuracy.
Materials Commonly Used in CNC Turning
CNC turning supports a wide variety of materials, making it suitable for diverse industries. Common materials include:
Metals: Aluminum, steel, stainless steel, brass, copper, titanium, and more.
Plastics: Nylon, ABS, PTFE, polycarbonate, and other engineering plastics.
Composites: Used for specialized applications where lightweight or specific mechanical properties are required.
The material chosen depends on the part’s intended function, strength requirements, cost, and machinability.
Benefits of CNC Turning
CNC turning offers numerous advantages that make it a preferred method in both large-scale and custom manufacturing.
Precision and Accuracy
CNC lathes can achieve extremely tight tolerances, ensuring that each part matches the design specifications exactly.
Consistency
Once a program is created, it can be reused to produce identical parts repeatedly with zero deviation, which is crucial in mass production.
Speed and Efficiency
Automated machines can work continuously, operate at high speeds, and switch tools quickly—reducing production time and labor costs.
Flexibility
Changing the type of part being produced is as simple as loading a new program and switching tools or materials.
Safety
Since the machine is enclosed and runs with limited human interaction, it significantly reduces the risk of injury.
Industries That Rely on CNC Turning
CNC turning is used across many industries because of its reliability and versatility.
Automotive: For engine components, axles, gears, and suspension parts.
Aerospace: For critical components like turbine shafts, housings, and fasteners.
Medical: For producing surgical tools, implants, and prosthetic connectors.
Electronics: For connectors, casings, and precision threaded components.
Oil and Gas: For creating pressure fittings, valves, and pipe connectors.
Each industry depends on CNC turning to produce components that require exact specifications and quality assurance.
CNC Turning vs CNC Milling
While both are CNC machining processes, CNC turning and CNC milling differ in how they shape materials. In turning, the material rotates while the tool remains fixed (except for its controlled movement). In milling, the cutting tool rotates, and the material remains mostly stationary.
Turning is ideal for creating round, tubular, or cylindrical parts. Milling is better suited for flat surfaces, angular shapes, and parts with complex features on multiple sides. In many manufacturing facilities, both turning and milling machines are used together to produce finished products.
The Future of CNC Turning
CNC turning continues to evolve with advancements in automation, software, and machine design. Newer machines now include:
Multi-axis capability: Allowing more complex geometries to be produced in a single setup.
Live tooling: Enabling milling, drilling, and tapping within a lathe.
Robotic integration: Automating loading, unloading, and part handling for fully unattended operation.
Smart systems: With IoT integration for real-time monitoring, error detection, and predictive maintenance.
As technology advances, CNC turning will become even more efficient, smarter, and capable of producing increasingly complex parts at higher volumes with less human involvement.
Conclusion
CNC turning has transformed the way parts are produced in nearly every major industry. By automating the traditional lathe machining process and combining it with computer control, CNC turning delivers exceptional precision, repeatability, and efficiency. From prototypes to mass production, it offers the flexibility and speed that modern manufacturers need to stay competitive.
